Yamaha Power Products – Generators, Pumps, Lawnmowers and Multi-purpose engines, are known for their reliability and easy features. At SHIMWELLS YAMAYHA we offer a wide range of Yamaha Power Products to suit every need that you have! If you would like more information, please do not hesitate to contact us.
Type: OHV Yamaha (5.5hp) air cooled -MZ175 (A2B) straight shaft / parallel keyed
Application: General purpose / Water pump
Fuel Tank Capacity: 4,5 Litre fuel tank - splashtype lubrication
Dimensions and Weight: 470mm x 470mm x 400mm - 25kg
Starter: Recoil / T.C.I ignition
Maximum Power (net): 3.0kW @ 3600r/min
Rated Power (net): 3.0kW @ 3600r/min
Fuel/Oil Type: Unleaded fuel / Automotive detergent oil - 10W30- SAE Grade - API SE rating or higher
Pump: X-supply pump
Pressure: Approx 324kPA / 3.3 (psi)

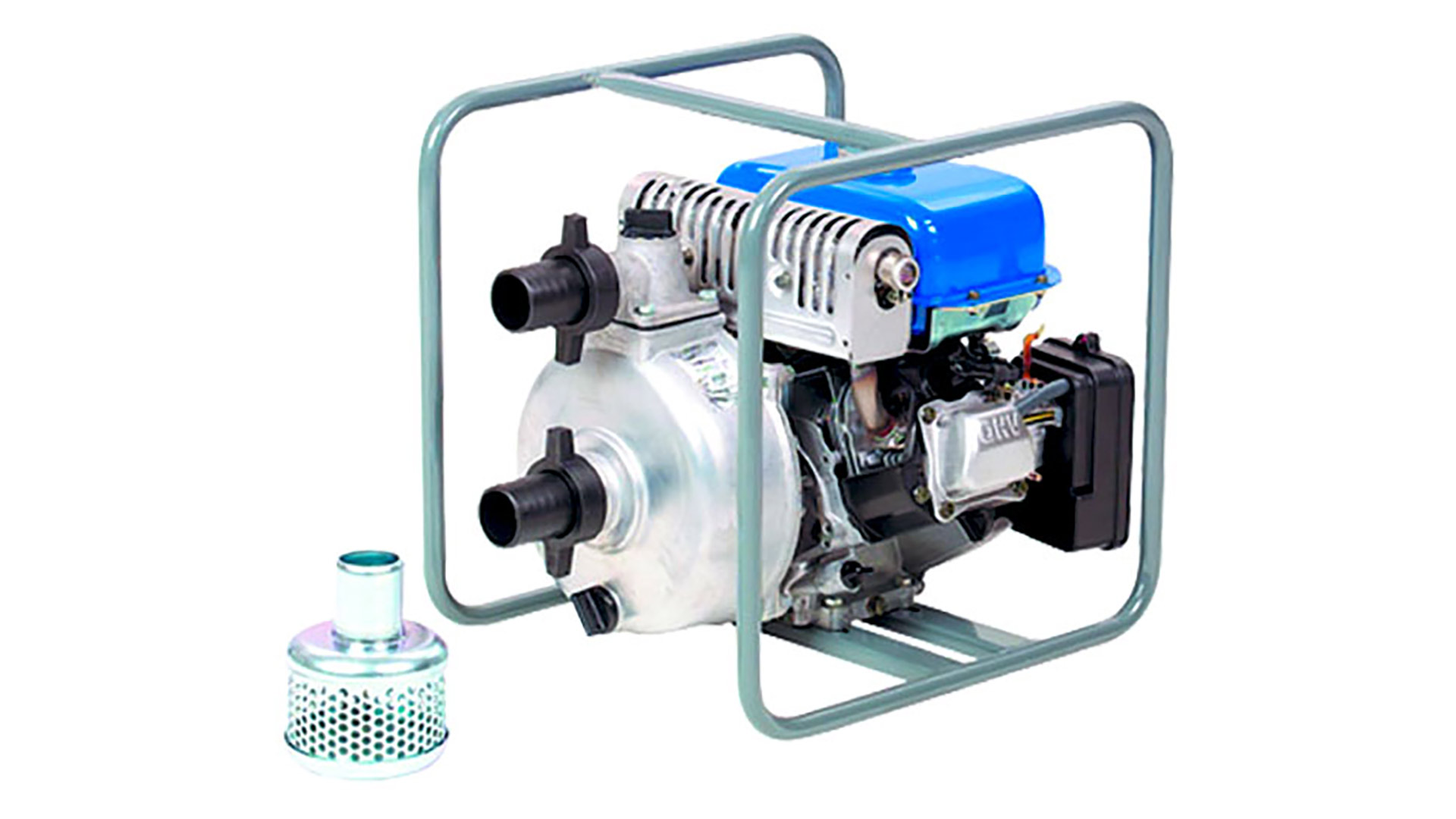

For general purpose / water pumping :: Max suction head: 8m Total Head: 33m Max discharge: 640 L/min
2 inch inlet/outlet: 4.5 Litre fuel tank - approx. 3.245 kPa
Powered by Yamaha engine: Metric rated power: 4.1 ps @ 3600rpm (3.03Kw)
4-Stroke engine: Straight shaft / parallel keyed - recoil start
